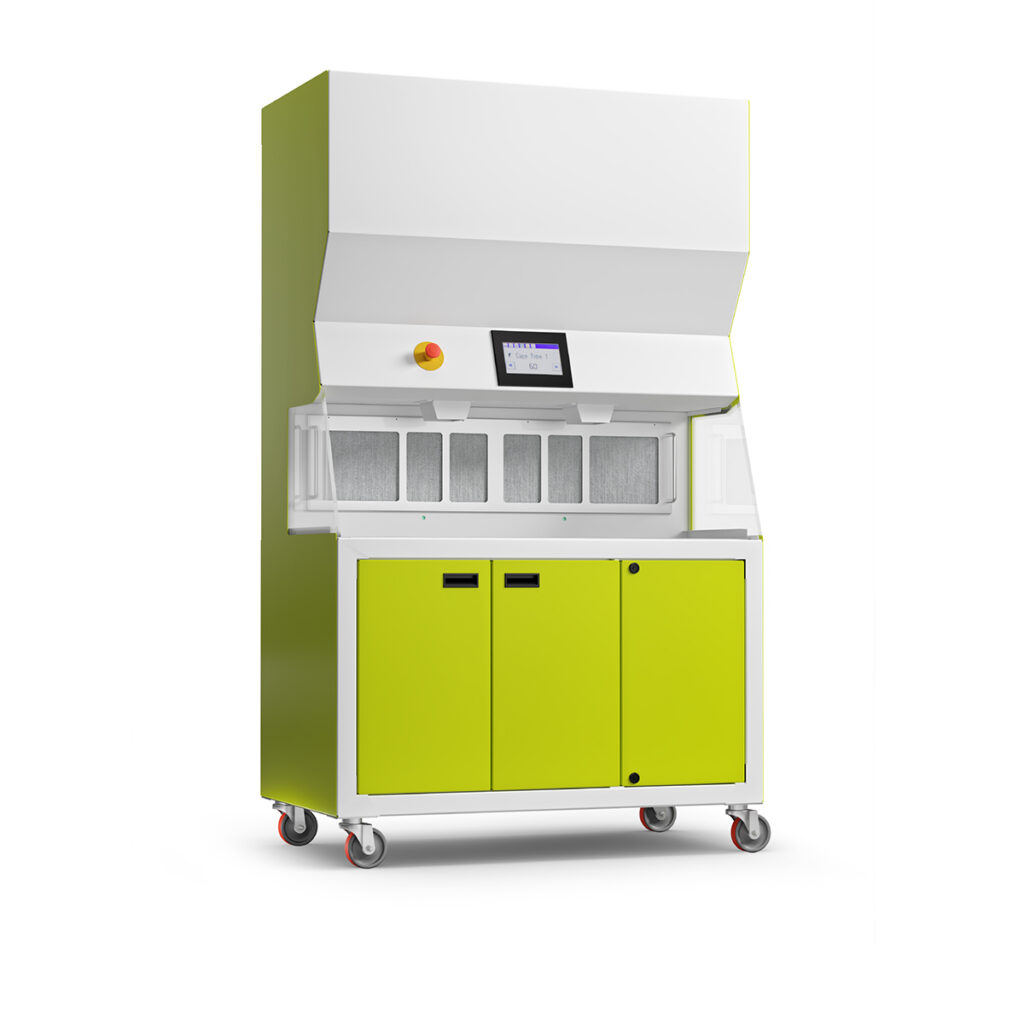

Bedding Dispenser
A modern cage-fill process
The Bedding Dispenser is one of the most accurate and efficient dispensers on the market, featuring unparalleled accuracy, a variety of easily adjustable programs, and the ability to fill a variety of rodent cage sizes. Offering unparalleled dispensing accuracy with a tolerance of +/- 4%, it is cost-efficient, improves consistency in research studies, and eliminates waste. This system is compatible with all free-flowing rodent bedding, as well as all commonly used wood and paper-based bedding (including corn cob).
The Bedding Dispenser utilizes a dual mechanical vacuum system that removes fine particles from bedding before being dispensed, while the integrated Active Airflow Technology protects the users from exposure to dust and particulate. A reduced fine particle count in the dispensed bedding assists in prolonging the life of individually ventilated cage (IVC) lid filters, air handling unit filters, and room filtration.
Extensive selections of advantages
- A more efficient cage change process with the automatic volume control of bedding within every cage;
- Improving the animals living environment by reducing the dust level;
- Replacing the scoop and bucket with an automatic system;
- No installation requirements with ‘plug-and-play’ technology.
Bedding Dispenser XL
To answer the needs of larger biomedical clients, a custom-built, XL-version automatic bedding filling station featuring:
- A bulk bag discharge system complete with a flexible screw conveyor as the most efficient means of loading the bedding dispenser;
- Gentle conveying action resulting in minimal product disturbance;
- Minimum horsepower and energy consumption.
Features
Active airflow technology
Using a dual mechanical and vacuum system, it actively removes fine particles from bedding before being dispensed, allowing for an improved cage environment for the animals while also protecting users from residual fine particles.
Easy and ergonomic loading
Available as a stand-alone unit, the bedding dispenser can easily be integrated into in-line dispensing solutions connected with a centralized vacuum system and allergen containment unit.
Class-leading accuracy
Ultrasonic dispensers provide two independent dispensing points with automated and excellent dispensing accuracy (+/-4%) – ideal for filling cages quickly & efficiently, by dispensing precise volumes of bedding every time.
High energy efficiency
Highly energy-efficient, it requires only a standard 13amp socket. Sleep mode shuts the system down automatically after a set period of non-use, cutting electricity costs. Touch the display to wake the machine instantly.
Plug and play
The unit is small enough to fit through doors, easy to move, and simple to set into place. Just plug the machine into a standard socket, add your desired bedding, and begin – it is really that easy.
Intuitive touch-screen HMI
The 7” color touch screen displays live graphics of the top hopper level and alerts users when bedding is required. Users can easily program in their own cage names and adjust dispense volumes accordingly.
Solutions
Biomedical Research
Vivarium operations depend on reliable cage and bottle reprocessing with controlled separation of clean and dirty zones. In germfree/SPF or higher biosecurity and containment settings, consistent reprocessing and controlled transfer help reduce cross-contamination risk. SteelcoBelimed provides integrated washing, sterilization, decontamination and automated handling solutions designed for high throughput and safe workflows.
Overall dimensions (WxDxH)
1154 x 670 x 1958 mm
45.43 x 26.38 x 77.09 in
Hopper Capacities
Upper Hopper
160 l / 9,764 cu in
Lower Hopper
80 l / 4,882 cu in
