Decontamination Lock
Multiple decontamination method chamber

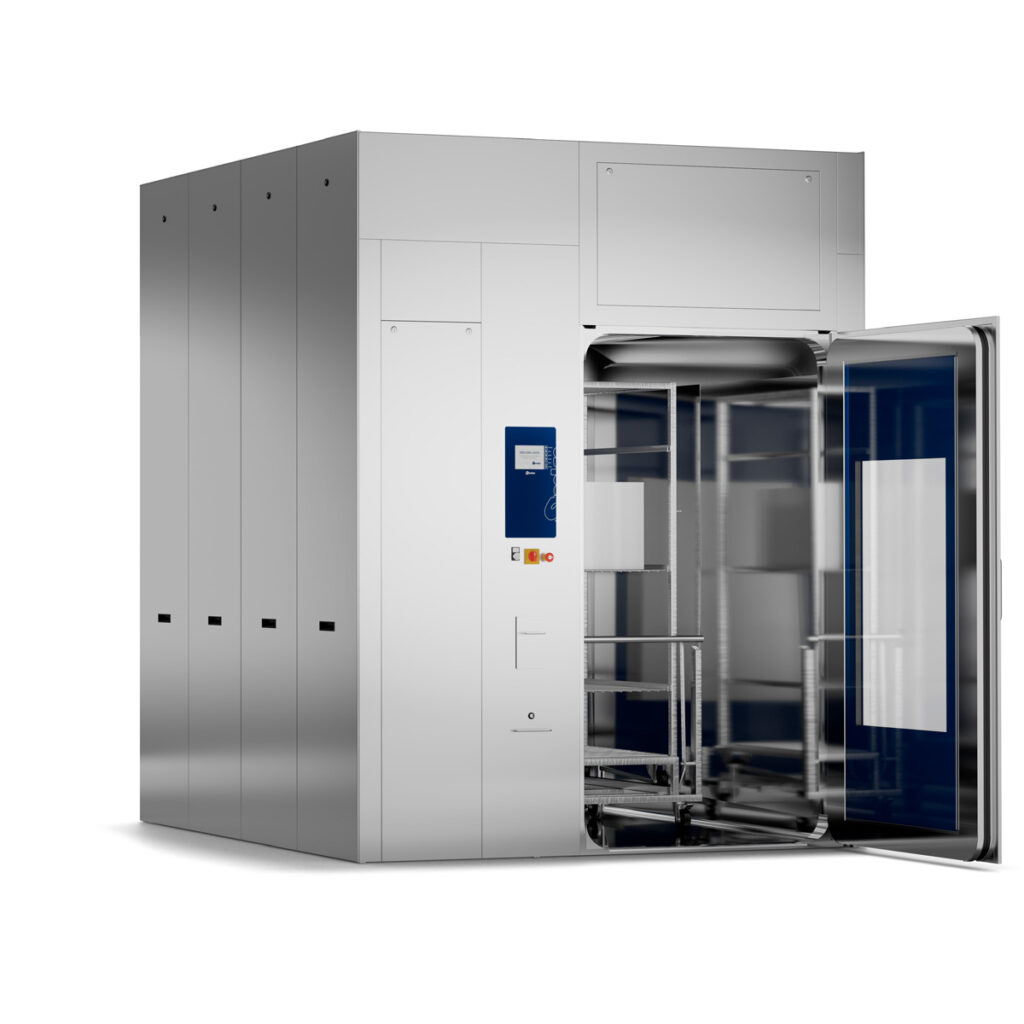

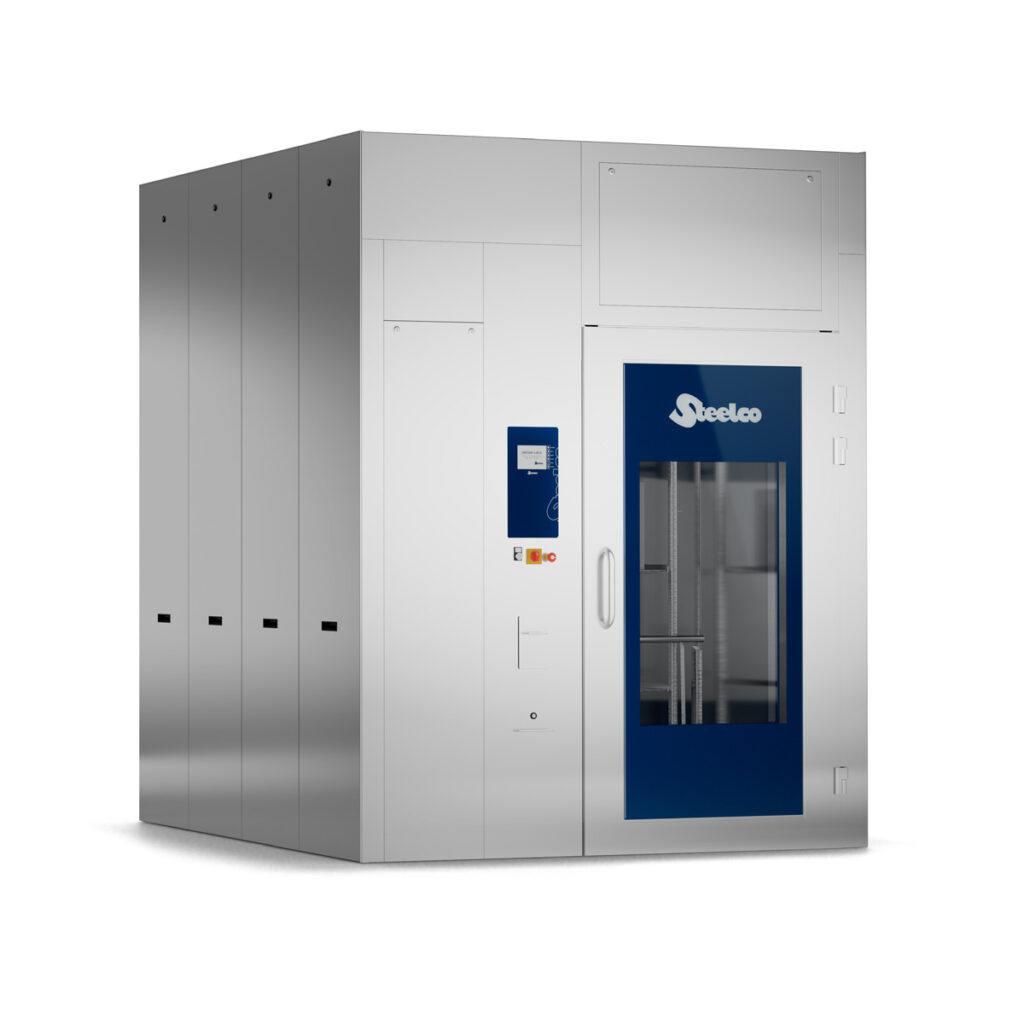

The Decontamination Lock provides a comprehensive, validated solution for the decontamination of heat-sensitive equipment such as electronic devices to be introduced into a facility. Available as single door or double door pass-through versions, both in a full glass or stainless steel door version with glass window, the access doors are equipped with integral inflatable gaskets in order to grant the tightness of the chamber in SPF barrier facilities as well as during the decontamination cycles.
To perform a decontamination cycle, the unit can be provided with an onboard hydrogen peroxide vapor generator or can be connected to an external generator. The external generator can be of different vendors, and users are free to choose the most appropriate process for their particular needs. As an alternative to the H2O2, Decontamination Lock can be connected to a chlorine dioxide generator.
The hydrogen peroxide H2O2 used to decontaminate the surfaces is distributed in the chamber in the form of vapor. The biocide present in the vapor phase has a homogeneous diffusion even in the most hidden interstices thanks to a dedicated ventilation system. This principle of vaporization/condensation has the advantage of concentrating the H2O2 in contact with the load’s surface granting great coverage and efficiency. Following this low-temperature treatment, the decontamination reaches the Sterility Assurance Level (SAL) values equal to 10−6.
To ensure full control of the process, the device is controlled by a PLC digital controller with a user-friendly color touch-screen HMI.
D-PRO - On-board hydrogen peroxide generator
D-PRO is a Hydrogen Peroxide dosing and vapor generator system manufactured to be fully integrated into the technical area of the main equipment sharing the same automation system (PLC and HMI). Through a thermal process, the liquid hydrogen peroxide changes its status into gas and by micro condensation is mixed with filtered air and then introduced into the chamber. A precise load cell for H2O2 canister is provided in technical area or can be integrated in fascia panel with a dedicated drawer, easily accessible from the loading side.
Fast and safe aeration phase

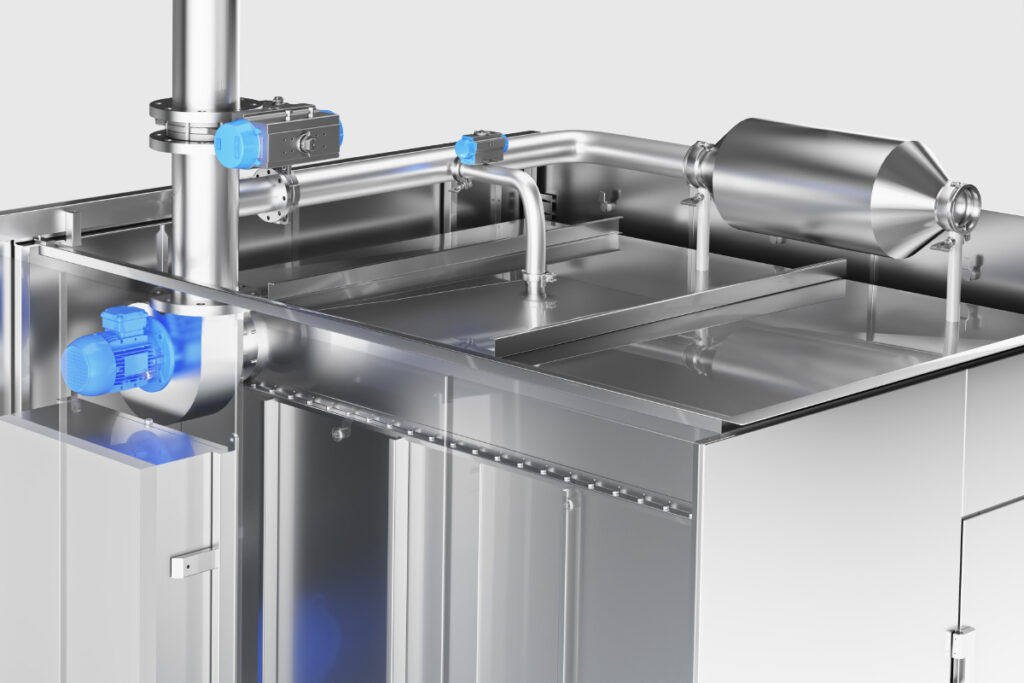

Once the biodecontamination process is complete, to reduce the concentration of H2O2 below the permitted set point, a fast aeration phase is performed by injection of fresh filterd air (HEPA filter with H14 ≥ 99.995% MPPS efficiency) into chamber, piping and on board generator. We developed two different high-speed aeration systems:
- Aeration by means of the centralized HVAC system, as standard
- Aeration by an in-line catalyzer able to render the sterilant harmless, available as option.
In all cases, sterilant is removed from the chamber to a safe level of less than 1ppm before the door gaskets are released and the unloading door is allowed to open.
Cycle validation
Our solutions for cycle validation:

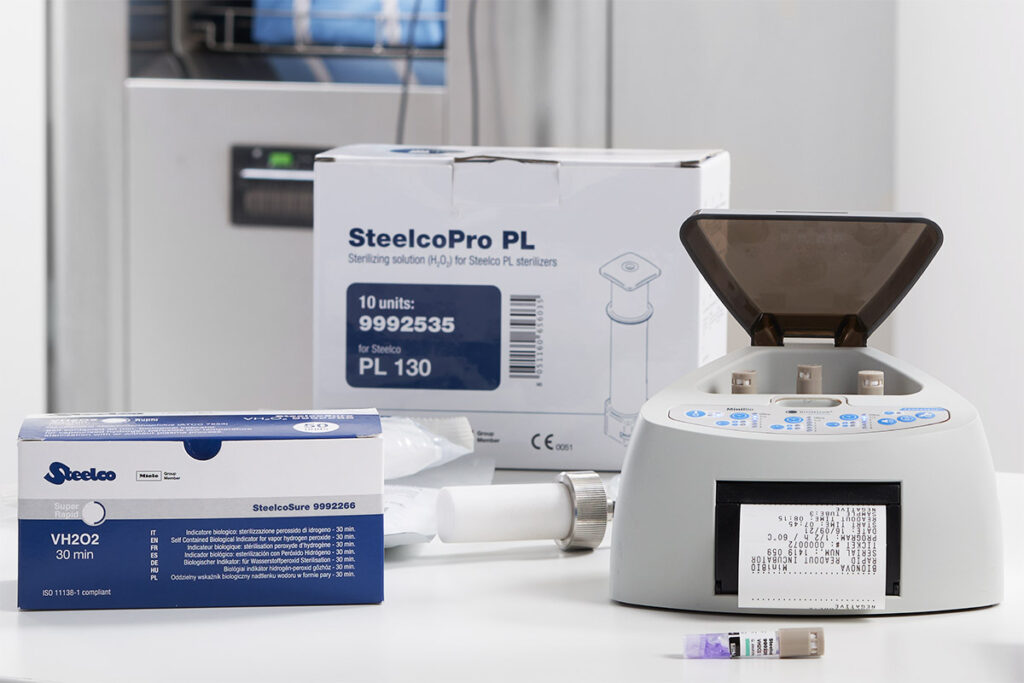

- Biological indicators (standard 24h – super rapid 30’)
- Incubator for biological indicators (standard and super rapid depending on biological indicators used)
- Tape with chemical process indicators Type 1
- Chemical process indicators Type 1 and Type 4
Features
Customization

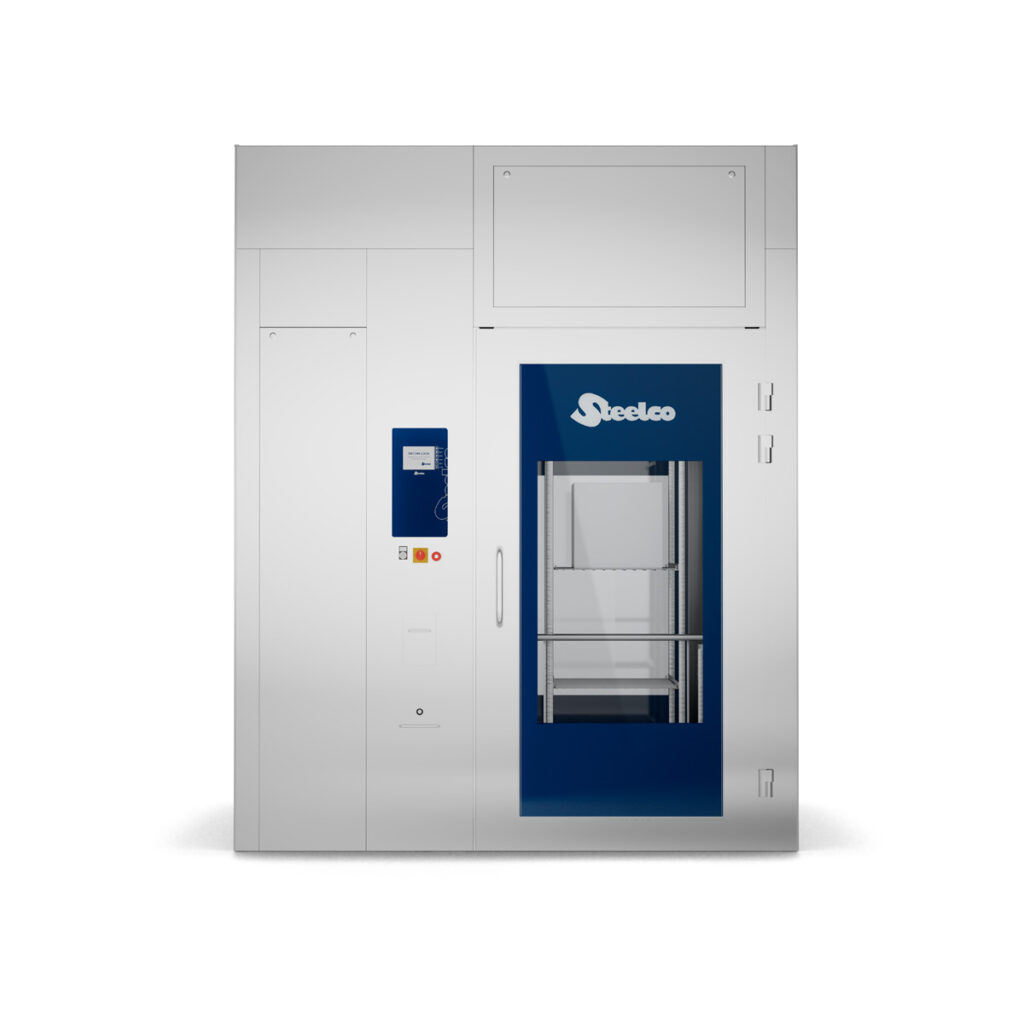

Available both in full glass or stainless steel door version with glass window. We are able to provide chamber customization to fit existing pit.
Hygienic design
Chamber entirely made of mirrored finished stainless steel AISI 316L resistant to all the chemical solution used for the decontamination process for long-term reliability and cleanliness.
Versatility
Available with on-board Hydrogen Peroxide generator or suitable for any type of existing external generator available in the market.
Chamber tightness
The access doors are equipped with integral inflatable gaskets in order to grant the tightness of the chamber in SPF barrier facilities as well as during the decontamination cycles.
Electronic devices decontamination
Changing station or IVC air handling units can be power supply during the decontamination cycle thanks to the IP 67 socket installed in chamber, granting full decontamination even in the inner parts of the device.
User-friendly control panel
Industrial PLC with touch-screen HMI and USB port. E-meter for utility consumption, self-service, and tablet connectivity ready.
Solutions
Biomedical Research
Vivarium operations depend on reliable cage and bottle reprocessing with controlled separation of clean and dirty zones. In germfree/SPF or higher biosecurity and containment settings, consistent reprocessing and controlled transfer help reduce cross-contamination risk. SteelcoBelimed provides integrated washing, sterilization, decontamination and automated handling solutions designed for high throughput and safe workflows.
The Decontamination Lock meets the applicable requirements of the following standards:
- EN 60204-1: 2006 + A1:2010
- EN ISO 12100: 2010
- 2006/42/EC (Machinery Directive)
- 2014/35/EU (Low Voltage Directive)
- 2014/30/EU (EMC Directive)
Usable dimensions
Door (WxH)
1170 x 2150 mm
46 x 89 in
Chamber depth
2300 mm
90 in
