PL 130
Low Temperature Vaporized H2O2 Sterilizers - High Capacity
PL 130 is a low-temperature sterilization system with a chamber capacity of up to 148 litres / 5.21 cu ft.
This device is designed for the terminal sterilization of packaged medical devices such as surgical instrumentation sensitive to heat and humidity. It is suitable for surgical instruments in metal, metal alloys, light non-metallic alloys, robotic and micro-surgery systems.
PL system is compatible with a wide range of materials, including stainless steel, silver, gold, platinum, tungsten, ceramic as well as plastics materials and 3D-printed resins. It can sterilize instruments with lumen with a maximum length of up to 2200 mm / 86.62″ and a minimum diameter of up to 0,5 mm / 0.02″.
Vaporized hydrogen peroxide sterilization with SteelcoPro PL sterilizing agent is safe, fast, and environment friendly – operating with low pressure and low temperature for protecting instruments and reducing energy consumption.
Available as single door or double door versions, it is equipped with an automatic space-saving sliding door. PL 130 is controlled by a PLC digital microprocessor with a 10″ color touch screen HMI. Loading and unloading operations can be done at an ergonomic height. The loading height is ergonomically placed at 920 mm / 36.22″.
The PL Series of Hydrogen Peroxide Sterilizers (HPSs) meets all the required standards.
High Performance
Five high-performance work cycles are programmed at the factory, validated, and available for running from the control panel:
- Fast | Dedicated to non-lumened instruments with and without articulations;
- Flex | For flexible endoscopes, including Da Vinci® instruments;
- Standard | For mixed loads: flexible, rigid, and semi-rigid lumened and non-lumened instruments;
- Intensive | For mixed loads: flexible, rigid, and semi-rigid lumened and non-lumened instruments with more challenging dimensions;
- Superfast | Ultra-fast cycle for reduced loads that can be activated on all models of the PL range upon request.
Ergonomic Safe Opening
An ergonomic touch-screen panel control or a foot pedal allows the operator to open and close the door automatically, avoiding any physical contact for the staff.
RFID Cartridge with Poka-Yoke Design
The single-use cartridge avoids any waste due to the short expiry time of the sterilant after loading in the machine. The cartridge is equipped with an RFID identifier providing information on production batch, expiry date, and H2O2 quantity. It prevents the cartridge’s reuse, incorrect re-filling, or use after the expiry date. Ergonomic front-loading cartridge system with “poka-yoke” design, which totally avoids operators’ mistakes.
Process Quality Focus
To ensure efficiency and safety in the sterilization process, the PL Series has a wide selection of features, among which are: a dedicated humidity check to control the humidity level and remove excess moisture; redundant sensors to monitor chamber pressure and temperature in real time, thus ensuring optimal performance; an external plasma generator system to better protect both the instruments and the environment.

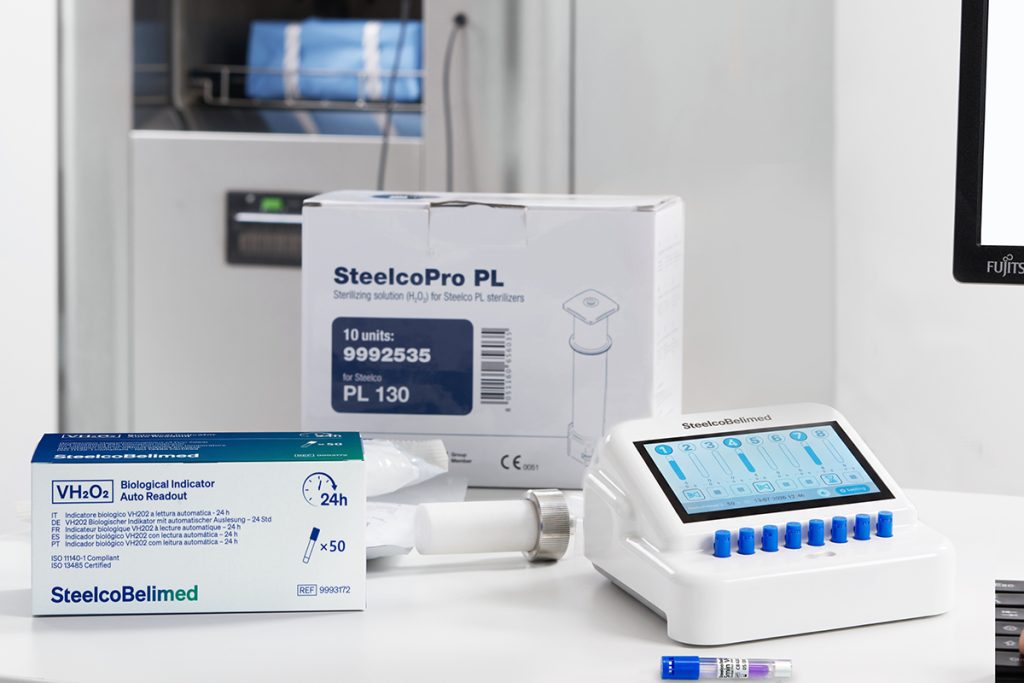

Biological & Chemical Indicators
For assuring a safe sterilization process, we provide a comprehensive assortment of chemical and biological indicators, including rapid-read solutions and their associated incubators.
Rapid Read Incubator features a dedicated traceability software as standard, with the aim of recording all the results of self-contained biological indicators (SCBIs) with fluorescence readout. The system also allows a completely automatic traceability procedure through digitalization solutions or a manual one to meet all customer requirements.
Packing tape is also available with a chemical indicator to ensure H2O2 correctly entered in contact with the load.
Control System and Traceability
The large 10″ touch-screen control panel displays bright, easy-to-read information. It offers an intuitive and practical aid for operators in their daily tasks.
An integrated thermal printer provides cycle data storage. If connected to the network, the sterilizer can be easily integrated with our digital traceability solutions.
Features
Small Footprint
The sliding door solution of the PL 130 allows reducing space in the clean area in favor of packaging and easier loading/unloading of the instruments.
Excellent Penetration
Excellent penetration into hollow instruments. Lumens with minimum Ø 0.5 mm and maximum length 2200 mm, with single, double, and triple channels.
Plug & Play
The models of the PL series are all Plug & Play, ready to be started quickly in any location.
Loading Flexibility
Semi-extractable shelves and a perfect range of accessories, including baskets and inserts, guarantee excellent loading flexibility in relation to the choice of the cycle and an adequate diffusion and penetration of the hydrogen peroxide vapor.
Environment Care
Hydrogen Peroxide emissions are up to 70 times lower than the most restrictive worldwide guidelines. Thanks to a triple safety system, H2O2 release is reduced to almost zero.
RFID or Barcode Recognition
A barcode or RFID scanner is available as an option. It ensures an easy and quick recognition of both operator and load.
Solutions
CSSD Sterile Reprocessing
Regardless of the size of your CSSD, SteelcoBelimed provides a full range of solutions complying to worldwide standards. From planning to design, installation and after-sales service, our solutions ensure a productive workflow, patient safety, the shortest process times, low utility costs, and maximal life span.
Solutions
Mobile CSSD
A fully functioning and validated turnkey mobile CSSD for temporary use. Available in two different sizes depending on the amount and kind of instruments to reprocess, this mobile unit is the ideal solution to provide continuity in instrument reprocessing during construction works.
Services
Digitalization in Healthcare
The future is smart. Smart systems in CSSDs work flawlessly, informing you well in advance when an error occurs or a repair is needed. Plan your operations with more precision than ever, consequently reducing costs and improve efficiency.
Digitalization also helps track and trace instruments and sets, so to be sure they have been correctly reprocessed inside your CSSD or outside in big reprocessing centers.
Steelco-branded low-temperature VH2O2 sterilizers are designed to comply with the European EN ISO 14937 guidelines on performance, EN ISO 14971, EN 61010-1/2-040, EN IEC 61326-1, EN 62366-1 guidelines on safety, and EN 62304 guidelines on software design. They are classified CE0051 legacy medical devices (Directive 93/42/EEC, MDD).
Single Door Version
Overall dimensions WxDxH
770 x 1040 x 1685 mm
30.3” x 40.94” x 66.34”
Chamber volume
~143 lt / 5,05 cu ft
Double Door Version
Overall dimensions WxDxH
770 x 1070 x 1685 mm
30.3” x 42.13” x 66.34”
Chamber volume
~148 lt / 5.21 cu ft
