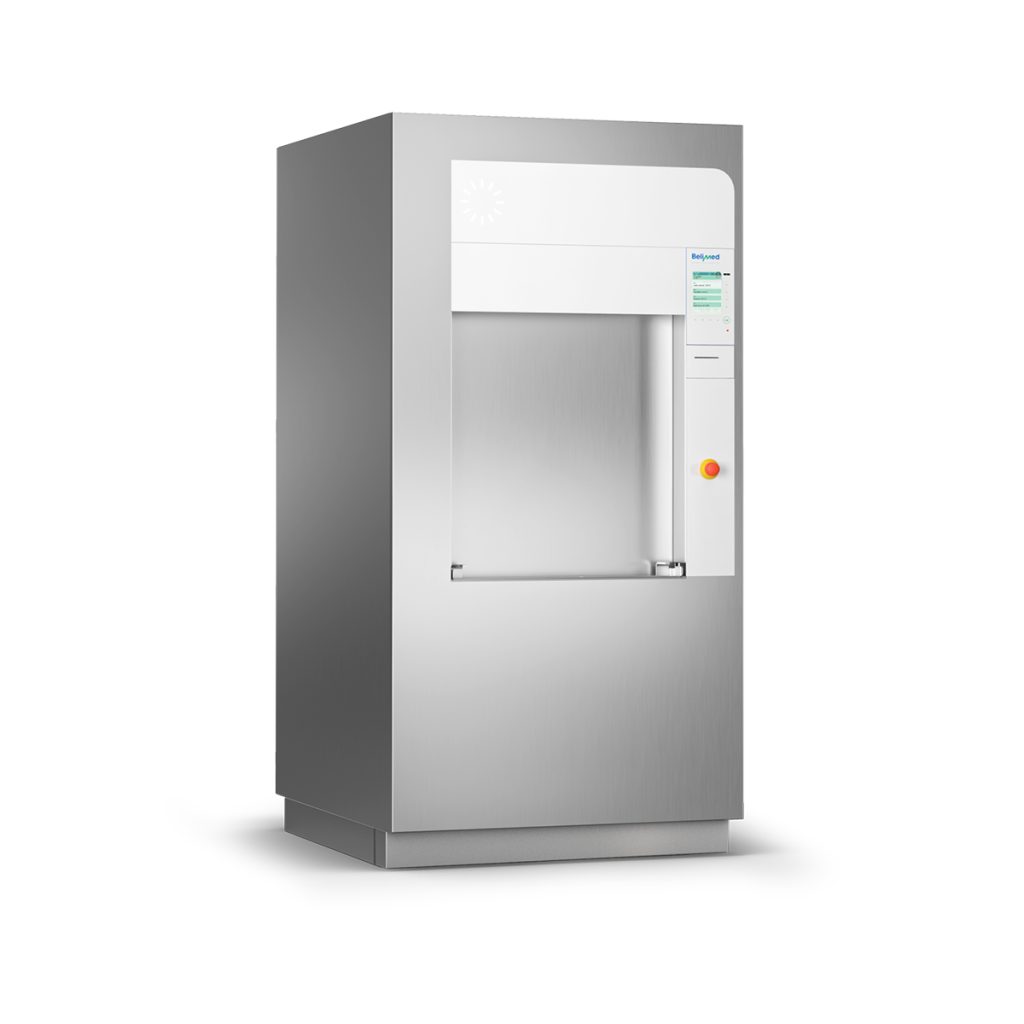

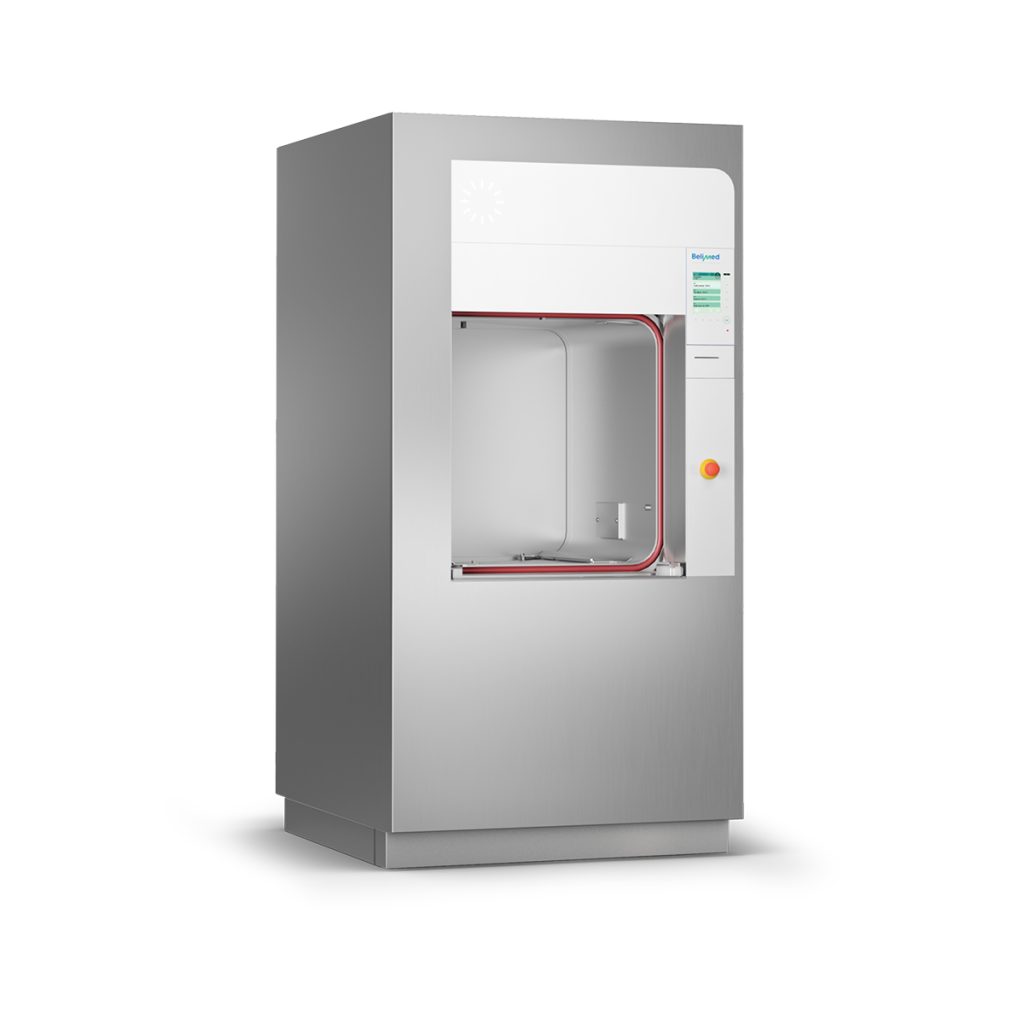

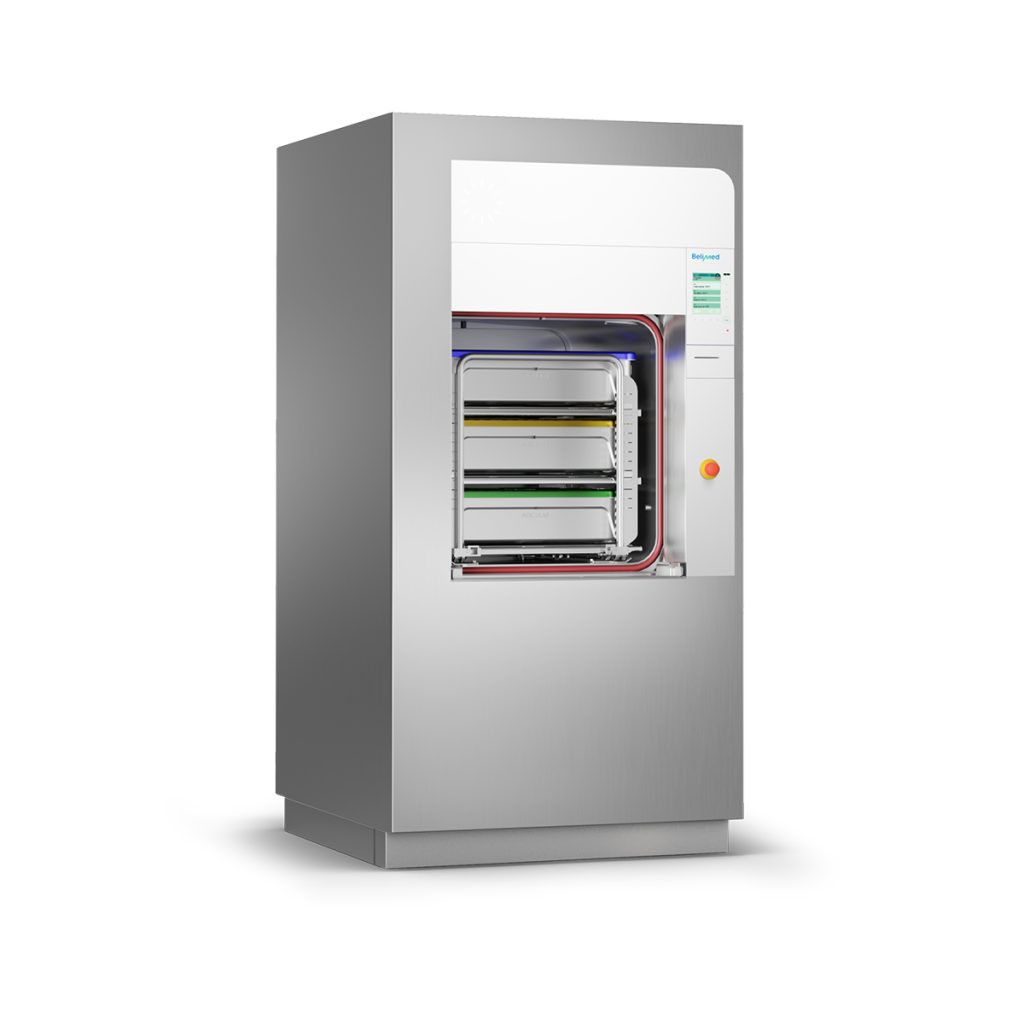

MST-V Series
Compact Steam Sterilizers - 4 to 12 STUs
The MST-V steam sterilizer combines exceptional performance with a remarkably compact design. Featuring a vertical sliding door, a width of just 99 cm, and a usable volume of 4 to 12 sterilization units, it maximizes efficiency in minimal space.
The sterilizer chambers are precision-engineered in Switzerland and undergo strict quality testing, ensuring the highest levels of safety and reliability. Advanced features include water-saving technology, high temperature tolerance, and extended door seal life. A patented LED status display provides clear process information at a glance, while network compatibility guarantees complete traceability of all process-relevant data. With the lowest loading height in its class and an ergonomic design, loading and unloading are effortless. Multiple units can be installed side by side for optimal use of limited space.
Safe, Reliable, and Durable
MST-V sterilizers are intended to handle heavy workloads. The well-conceived chamber design and stable door system ensure consistent reliability and a long service life. The highquality stainless steel piping used throughout the sterilizer is extremely durable, resistant and mechanically stable.
Water-Saving Process Technology
The MST-V delivers maximum economic efficiency through advanced process technology. This reduces water consumption or allows for a higher inlet temperature of the cooling water, with the corresponding energy savings. An additional reduction in consumption is achieved by the water-saving system of the integrated and extremely low-noise water ring vacuum pump.

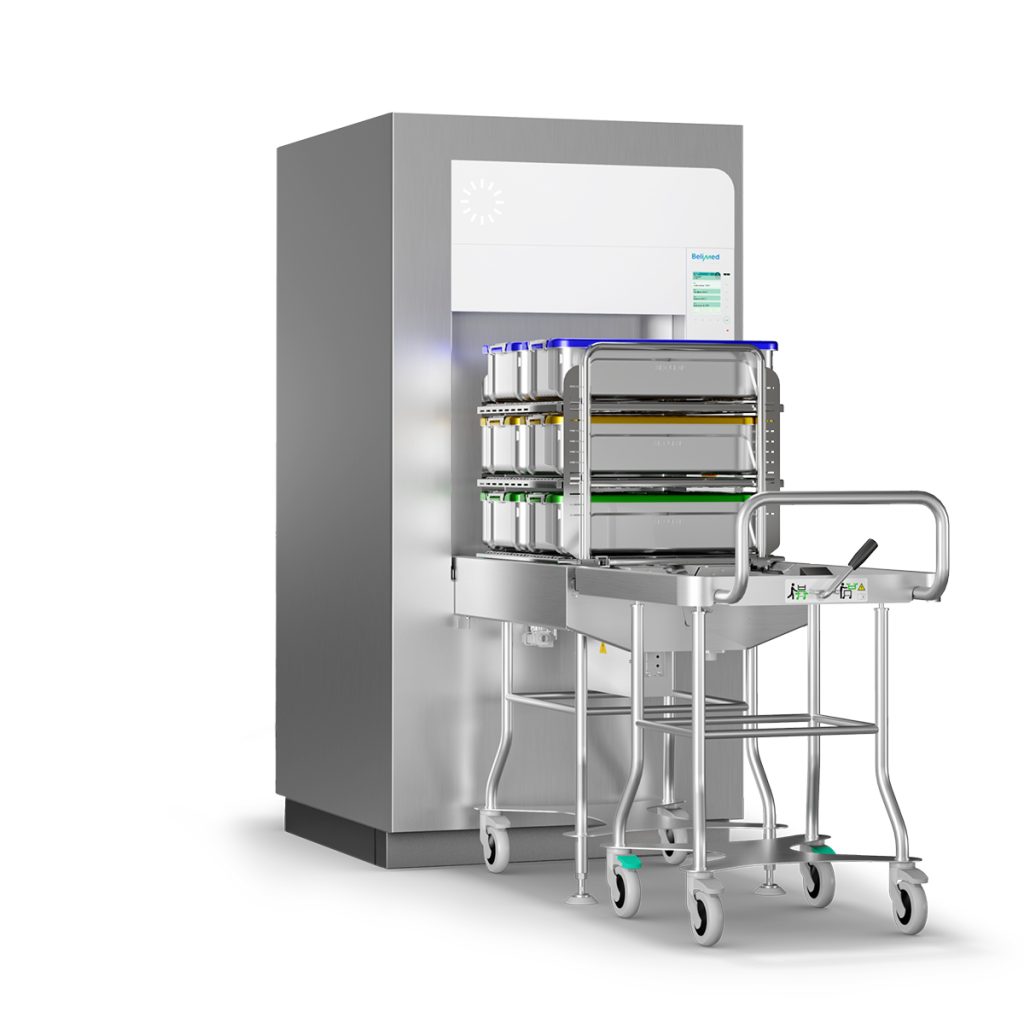

Loading and Unloading Automation
Our sterilizers are equipped with a comprehensive set of manual and automated load/unload accessories, designed to enhance workflow efficiency and adapt to various load configurations. The level of automation of the sterilizer can be adapted to your individual needs to ensure optimal process flow.
Process Status Visible from a Distance
Important information, such as the remaining running time, readiness for loading or unloading and warning messages, is displayed via the patented process status display.
SmartHub for a Fully-Digital CSSD
SmartHub is an innovative software solution that captures all machine data and turns it into useful, well visualized information. The SmartHub web application allows real-time monitoring of all equipment and the individual cleaning and sterilization programs.
Features
Hygienic Design for Perfect Cleaning
The continuous stainless steel surface, combined with glass and high-quality HI-MACS® material, meets the highest hygienic requirements and allows for efficient cleaning.
Automatic Start and Switch-Off
Automatic start and shutdown allow the sterilizer to complete warm-up, daily tests, and energy-saving deactivation without manual input. The automatic function can be flexibly adjusted to meet the CSSD’s needs.
User-Friendly Interface
The clear menu structure of the illuminated color display ensures easy operation, and the information on the display is easily visible even when read from an extremely oblique angle.
Water- and Energy-Efficient Technology
Advanced process technology reduces water and energy consumption, supported by an integrated low-noise water ring vacuum pump for maximum efficiency.
SmartHub Digital Monitoring
Innovative SmartHub software captures machine data and provides real-time visualization of equipment status and individual cleaning and sterilization programs.
High Quality
MST-V sterilizers feature robust chamber design, stable doors, and high-quality stainless steel piping to handle heavy workloads and ensure long service life.
Insights
Automation
Automation is key to save time whilst minimizing workflow interruption.
Our automated systems range from loading and unloading to recognizing instruments and packing them. They optimize labor usage and speed up the instrument reprocessing workflow. Moreover, few manual handling makes it possible to free up staff for other important tasks.
Configurations
MST-V 6-6-6
Single- or double-door versions available.
Carrying capacity
4 StUs
Chamber volume
300 l
Chamber dimensions (HxWxD)
660 x 660 x 700 mm
System dimensions (HxWxD)
1,970 x 990 x 1,095 (1,120) mm
MST-V 6-6-9
Single- or double-door versions available.
Carrying capacity
6 StUs
Chamber volume
430 l
Chamber dimensions (HxWxD)
660 x 660 x 1,000 mm
System dimensions (HxWxD)
1,970 x 990 x 1,395 (1,420) mm
MST-V 6-6-12
Single- or double-door versions available.
Carrying capacity
8 StUs
Chamber volume
585 l
Chamber dimensions (HxWxD)
660 x 660 x 1,354 mm
System dimensions (HxWxD)
1,970 x 990 x 1,750 (1,775) mm
MST-V 6-6-18
Double-door version only. Not available for the US market.
Carrying capacity
12 StUs
Chamber volume
880 l
Chamber dimensions (HxWxD)
660 x 660 x 2,000 mm
System dimensions (HxWxD)
1,970 x 990 x 2,420 mm
Solutions
Sterilization Solutions
The “sterile area” of a Central Sterile Supply Department (CSSD) is the area where sterilized items are stored, packaged, and prepared for distribution.
Our complete range of equipment has been designed to sterilize instruments and accessories as well as to store them in the perfect conditions.
Services
Data & Insights
Informed decision-making and optimization start with data collection.
How to easily and automatically collect, store, and analyze data from your machines? Through data logging.
Our SmartHub pieces of software allow to perform all these tasks on-premise or on the cloud.
Belimed-branded sterilizers comply with the device relevant standards for medical devices. They comply with EN 285 and production takes place under the control of the EN ISO 13485 certified quality management system. The sterilization process can be validated in accordance with EN ISO 17665-1.
