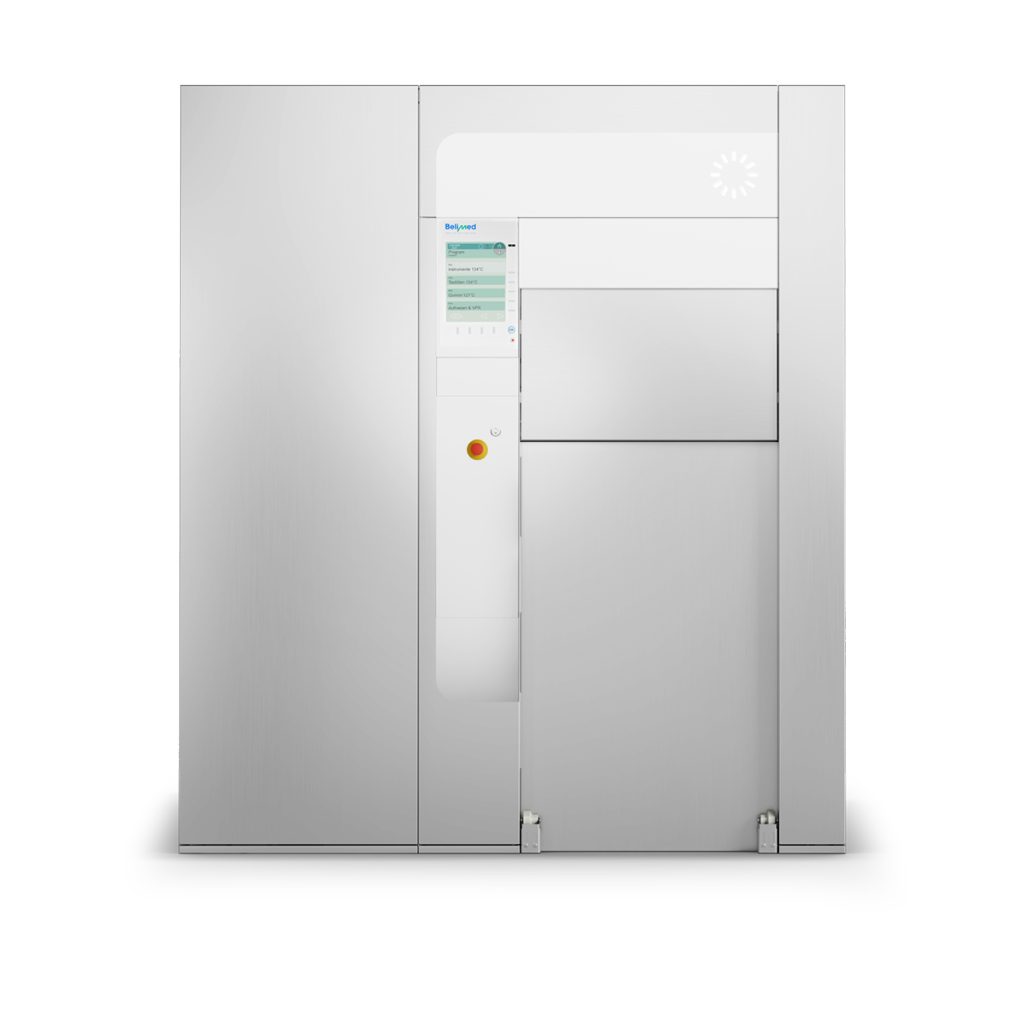

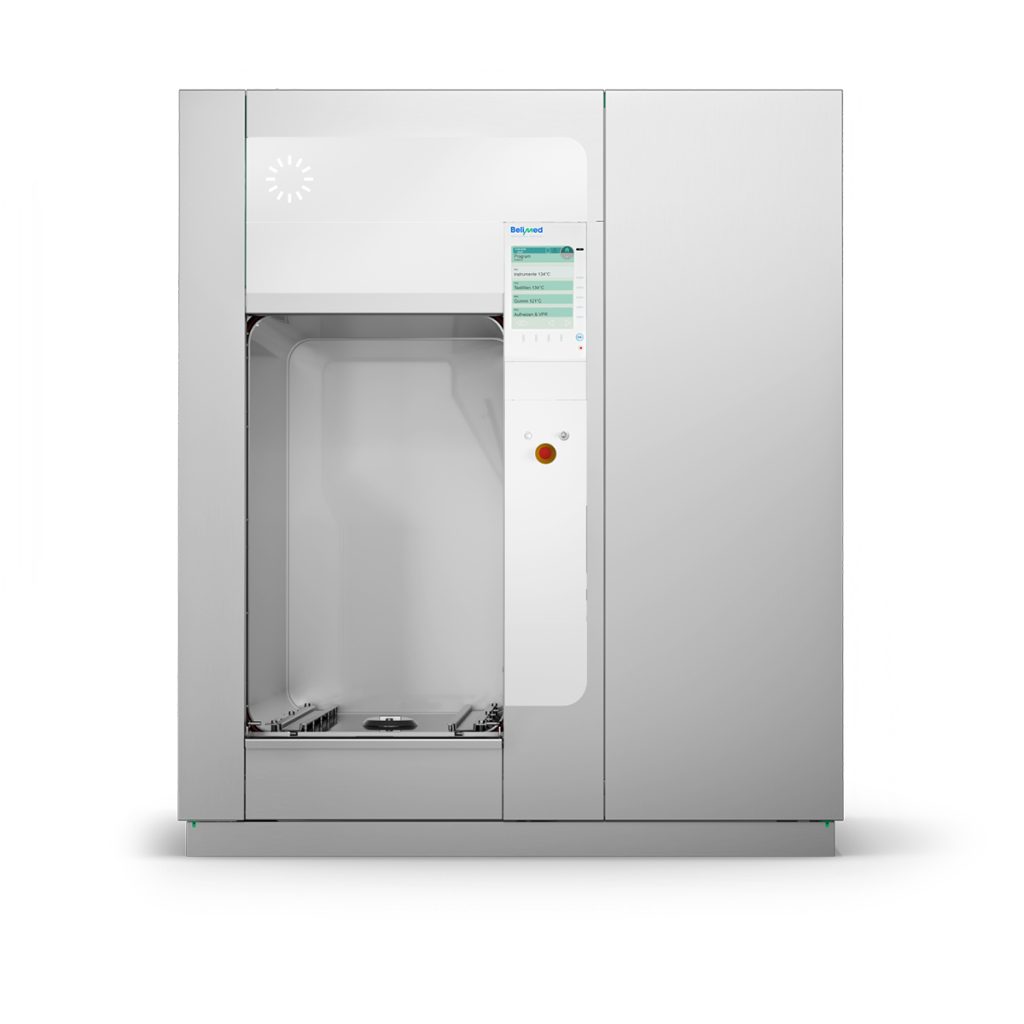

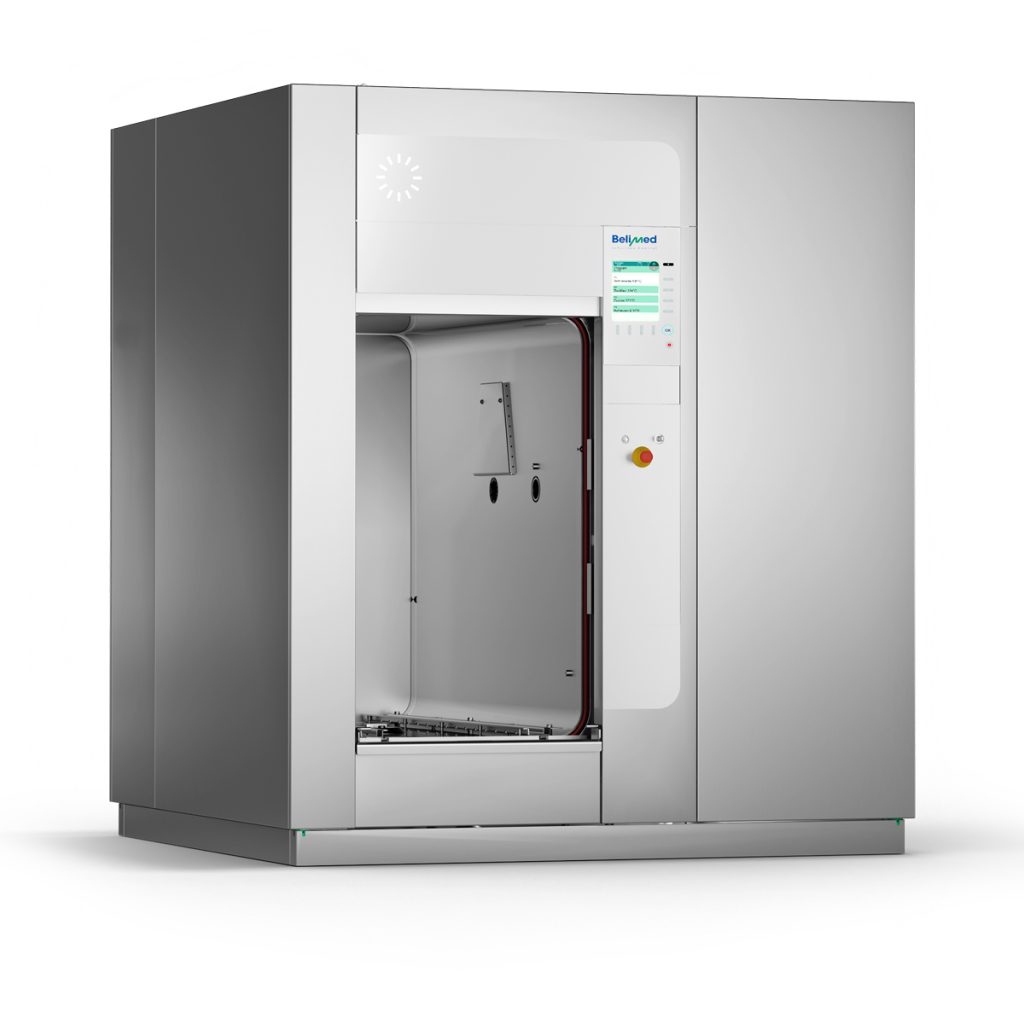

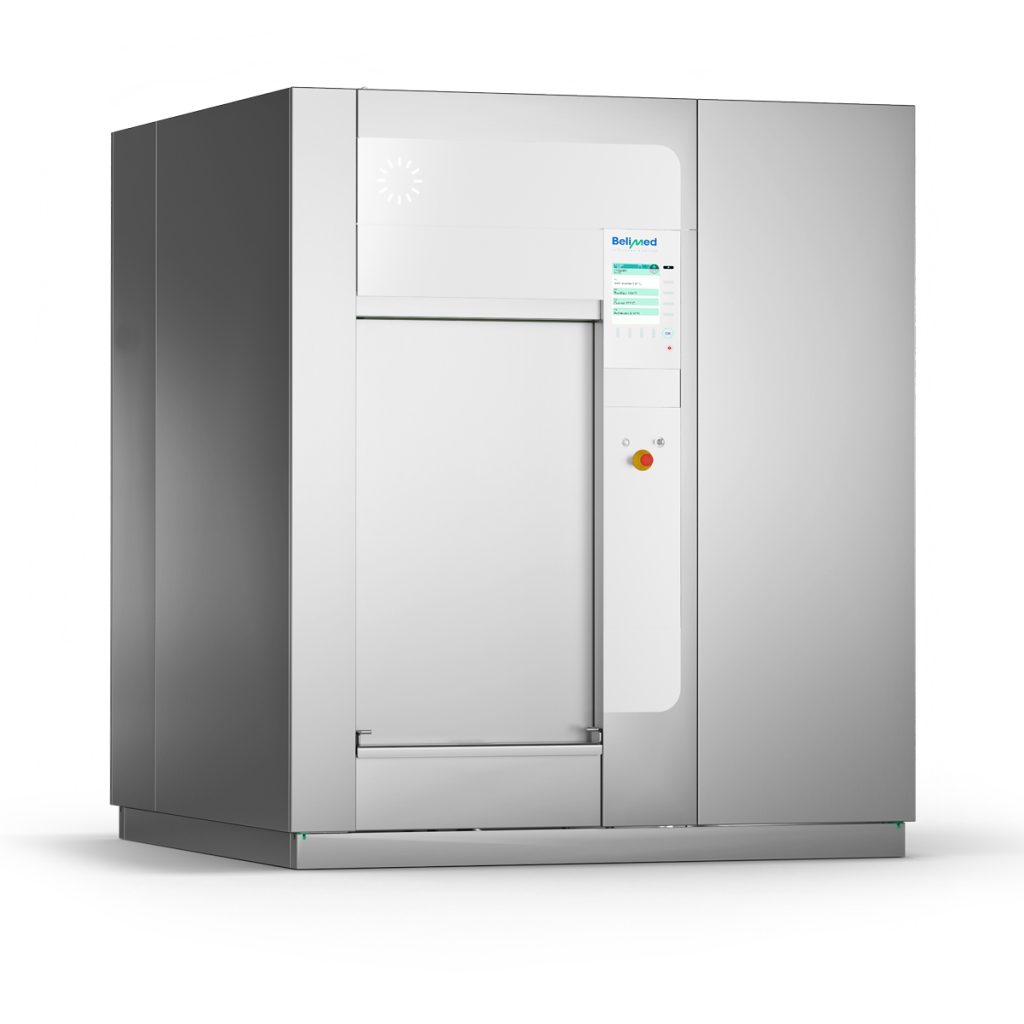

MST-H Series
Steam Sterilizers - 9 to 18 STUs
The MST-H steam sterilizer optimizes workflow by maximizing throughput while promoting efficient use of resources. With a capacity of 9–18 StUs, it handles large loads in short cycle times. A wide range of auxiliaries allows flexible adaptation to the needs of any CSSD.
Advanced process technology reduces water consumption and accelerates cycles, while high-precision milled door seals extend service life. Its low-noise vacuum pump, integrated steam generator, and stainless steel piping ensure quiet, reliable operation. Easy service access simplifies maintenance, and additional options provide maximum flexibility. The patented LED status display delivers clear, at-a-glance process information.
Economical and Efficient
Thanks to its water-saving process technology, the MST-H sterilizer achieves maximum efficiency by significantly reducing water consumption. Water usage can be further cut by up to 95% through optional connection to the building’s cooling circuit. Additional savings are achieved with the integrated, extremely low-noise water-ring vacuum pump and the standard ejector.
Steam Generator Options
Optional electric steam generators and steam to steam generators provide steam made from purified water (Clean Steam). This reduces the need for expensive chamber maintenance and extends the life of certain sterilizer components. These can be either internally mounted on top of the sterilizer or externally mounted in the facility’s mechanical space.
Safe, Reliable, and Durable
MST-H sterilizers are designed for intensive use. The clever chamber design in combination with a stable door system ensures consistently high reliability and a long service life of the installations.

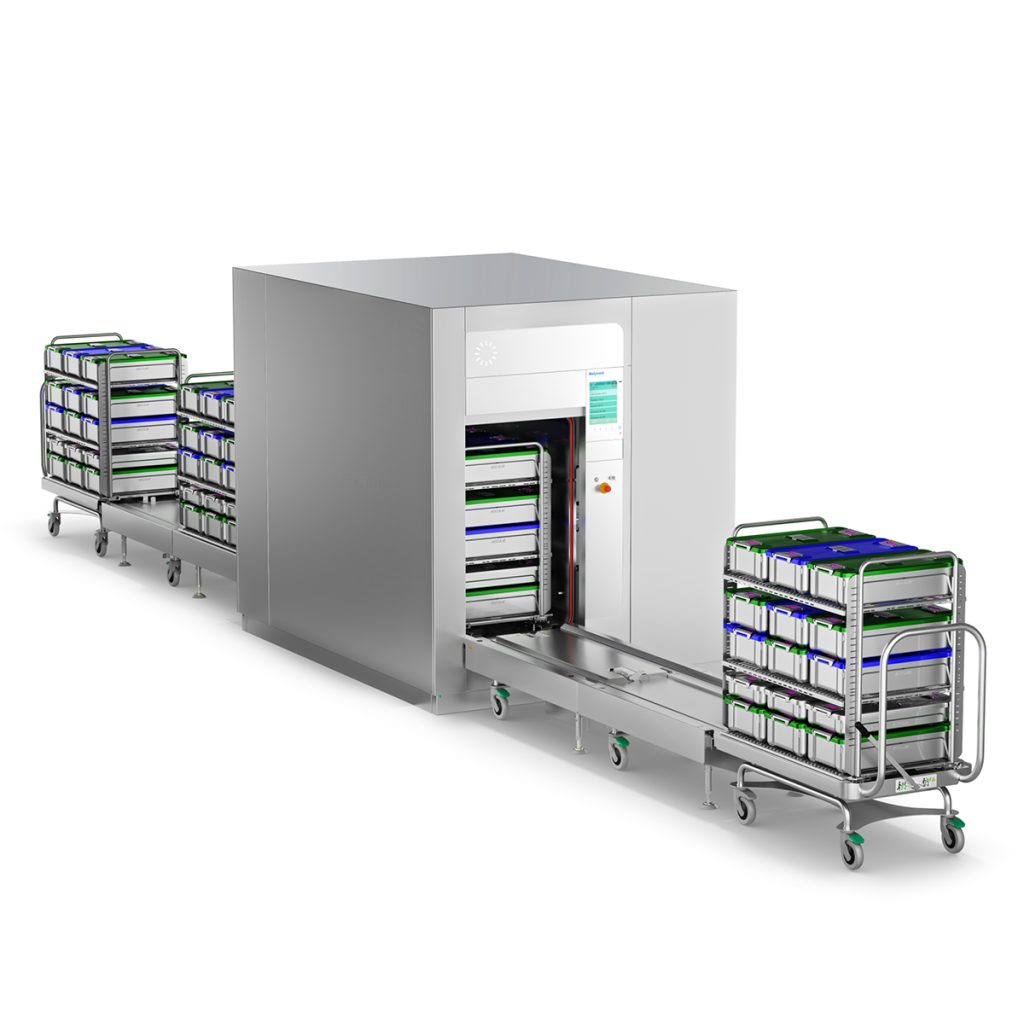

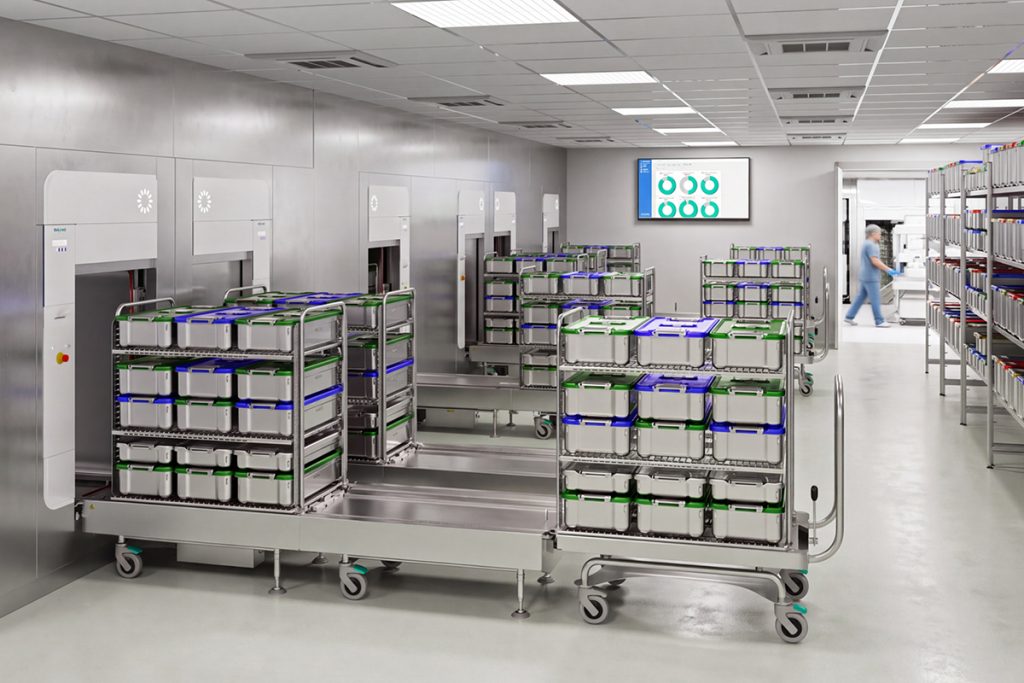

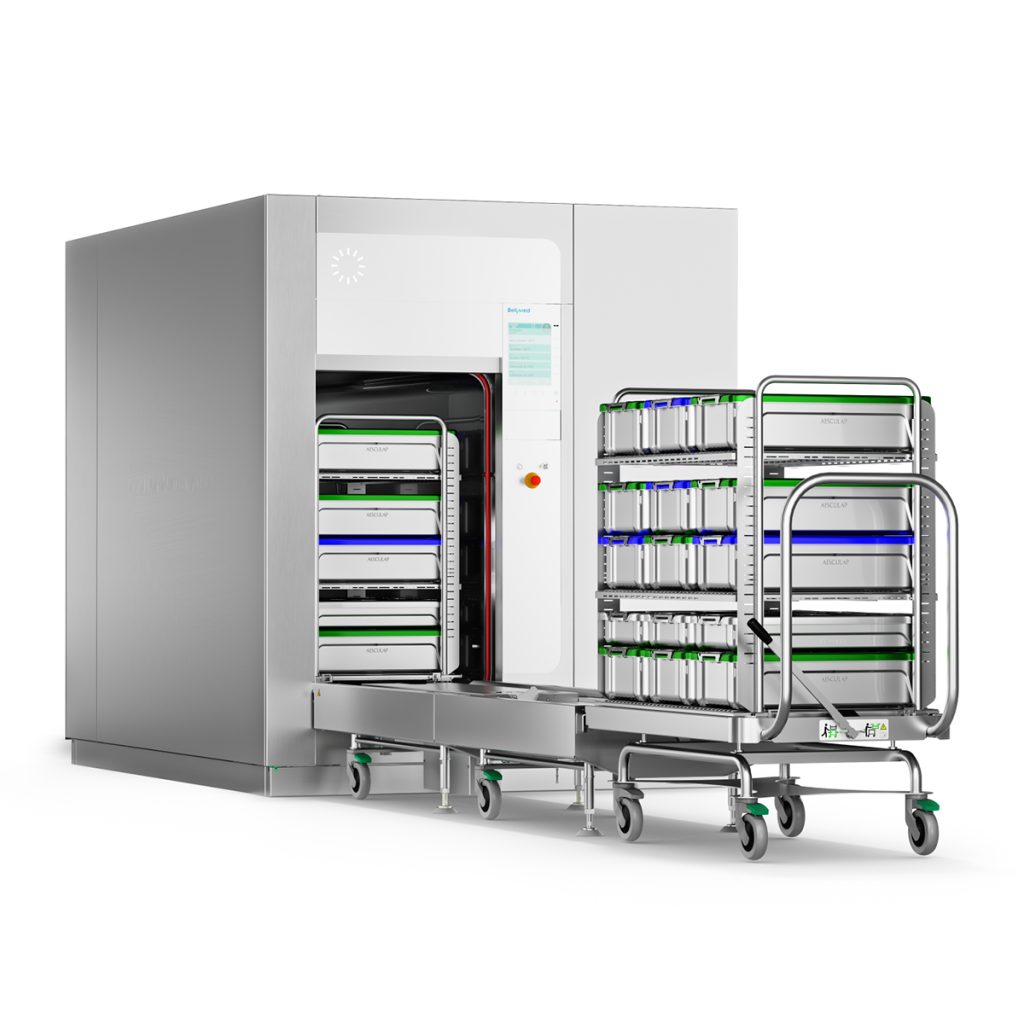

Loading and Unloading Automation
With multiple versions and a wide range of auxiliaries, the sterilizer’s workflow and automation can be tailored to your specific needs and optimized for your operations.
Process Status Visible from a Distance
Important information, such as the remaining running time, readiness for loading or unloading and warning messages, is displayed via the patented process status display.
SmartHub for a Fully-Digital CSSD
SmartHub is an innovative software solution that captures all machine data and turns it into useful, well visualized information. The SmartHub web application allows real-time monitoring of all equipment and the individual cleaning and sterilization programs.
Features
Hygienic Design for Perfect Cleaning
The continuous stainless steel surface, combined with glass and high-quality HI-MACS® material, meets the highest hygienic requirements and allows for efficient cleaning.
Automatic Start and Switch-Off
Automatic start and shutdown allow the sterilizer to complete warm-up, daily tests, and energy-saving deactivation without manual input. The automatic function can be flexibly adjusted to meet the CSSD’s needs.
User-Friendly Operation
The intuitive menu navigation and illuminated 10″ color touchscreen ensure maximum user comfort. Important information is displayed via the patented process status display.
SmartHub Digital Monitoring
Innovative SmartHub software captures machine data and provides real-time visualization of equipment status and individual cleaning and sterilization programs.
High-Capacity and Adaptable
Available in three sizes, each model can be configured with single or pass-through double doors to meet different volume and workflow requirements.
Efficient and Eco-Friendly
MST-H sterilizers cut water use by up to 95% and save energy with a low-noise vacuum system.
Insights
Automation
Automation is key to save time whilst minimizing workflow interruption.
Our automated systems range from loading and unloading to recognizing instruments and packing them. They optimize labor usage and speed up the instrument reprocessing workflow. Moreover, few manual handling makes it possible to free up staff for other important tasks.
Configurations
MST-H
Capacity
9 to 18 StUs
Chamber volume
from 761 to 1,449 l
Chamber dimensions (HxWxD)
1,080 x 660 x 1,058 to 2,014 mm
System dimensions (HxWxD)
1,970 x 1,700 x 1,374 to 2,330 mm
Loading height
350 mm

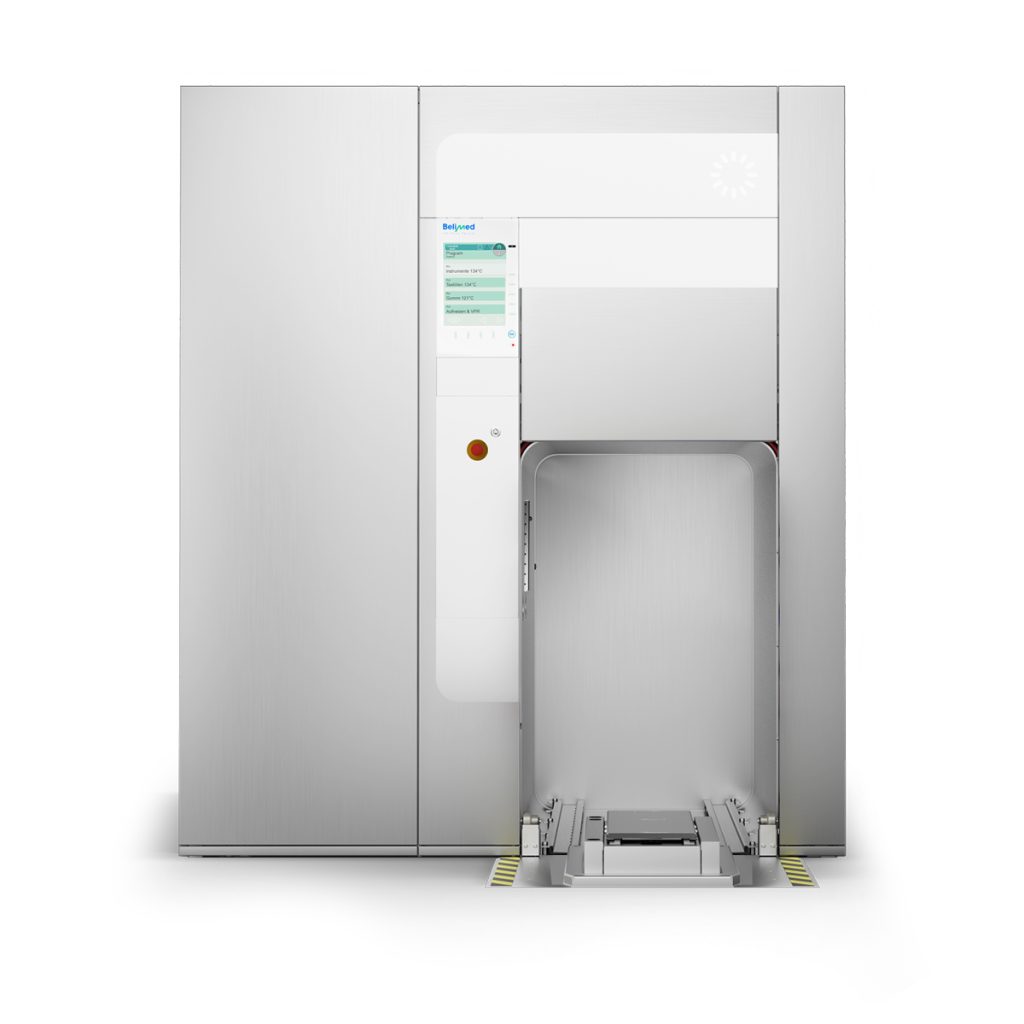

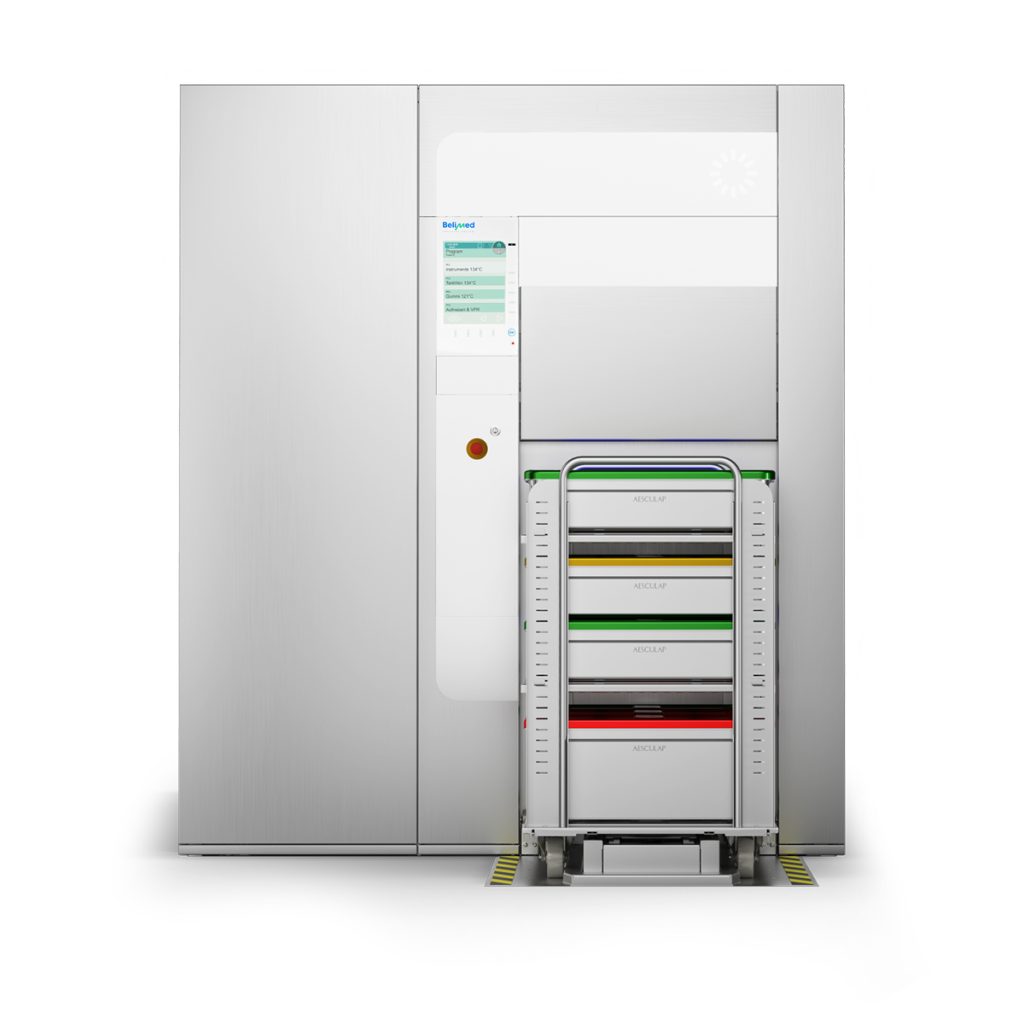

MST-H GR
Capacity
8+4 to 12+6 1⁄2 StUs
Chamber volume
from 1,006 to 1,449 l
Chamber dimensions (HxWxD)
1,080 x 660 x 1,398 to 2,014 mm
System dimensions (HxWxD)
1,970 x 1,765 x 1,694 to 2,330 mm
Loading height
floor loading
Solutions
Sterilization Solutions
The “sterile area” of a Central Sterile Supply Department (CSSD) is the area where sterilized items are stored, packaged, and prepared for distribution.
Our complete range of equipment has been designed to sterilize instruments and accessories as well as to store them in the perfect conditions.
Services
Data & Insights
Informed decision-making and optimization start with data collection.
How to easily and automatically collect, store, and analyze data from your machines? Through data logging.
Our SmartHub pieces of software allow to perform all these tasks on-premise or on the cloud.
Belimed-branded sterilizers comply with the device relevant standards for medical devices. They comply with EN 285 and production takes place under the control of the EN ISO 13485 certified quality management system. The sterilization process can be validated in accordance with EN ISO 17665-1.
Please check single- and double-door versions’ availability in your country with your SteelcoBelimed representative.
