PWD 86 Series
Washer Disinfectors - up to 18 DIN Trays
The PWD 86 Series of high-capacity instrument washer-disinfector is designed to meet the cleaning challenges of the increasing complexity of your CSSD.
A synergy of exclusive technological innovations, connecting efficiency and sustainability, allow for a complete washing, thermal-disinfection, and forced-hot-air drying of all types of surgical instruments. Both models in the PWD 86 Series are equipped with: variable-speed pump, modular racks, and a drying system with two HEPA filters. These features provide improved cleaning and drying performance, whilst reducing water and energy consumption to an unparalleled level.
The PWD 86 Series is available in two configurations with different widths, but sharing the same main features and performances. They both conveniently use the same wash racks and modules, ensuring a smooth workflow.
Thanks to our new patented “Power Pulse Cleaning” technology, the PWD 86 Series features an improved cleaning of hollow instruments that are difficult to reprocess, thus minimizing or eliminating the need for manual pre-cleaning.
Robotic Kits
MIS Instruments
Ophthalmic Instruments
Anaesthesia Instruments
Orthopedic Instruments
Bulky Items
Water & Energy Recovery Systems
The combination of the different tank options allows you to reach the optimal configuration, as efficiently and as fast as you need. PWD 86 series can be equipped with different types of built-in water tanks:
- DI Pre-Heating Tank: to speed up the process by preheating the final rinse;
- Recycling Tank: to recycle the final rinse water to be used in the following washing cycle.
The steam condenser with heat recovery absorbs heat during the drying phase to preheat final rinse water for the following cycle. Incoming cold demineralized (DI) water passing through a heat exchanger assists to save both heating energy and cooling water.
Automatic Rack Recognition
Racks’ configuration is customisable according to the items to be reprocessed.
When loading them in the washer disinfector, an antenna scans their configuration and suggests the optimal cleaning and disinfection cycle.
Efficacy of the cleaning and disinfection cycles is improved and cycle time, water usage, and energy consumption are optimized.
Double Drying System
The drying system provides optimal performance: it saves process time and improves drying quality thanks to two blowers, heating elements, and HEPA filters. HEPA filters are located immediately before the chamber to minimize the risk of potential particles entering the chamber.

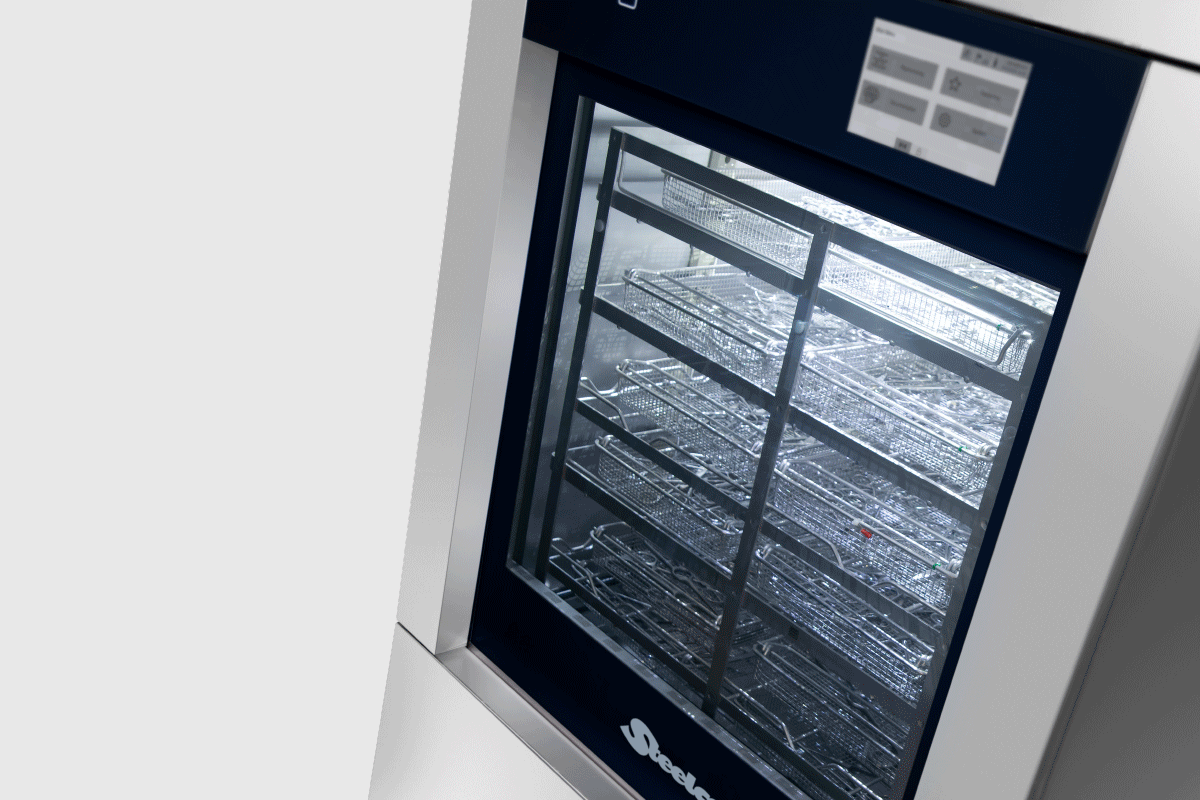

Intuitive Process Monitoring
Color-coded messages help quickly identify the cycle status. They are displayed on the HMI and directly in the chamber through LED coloured lights.
Hygenic Design and Water Filtration
The washing chamber has rounded edges in order to avoid any dirt traps, minimizing the risk of microbial growth. Sump fine-filter mesh reduces the size of the debris that can recirculate to less than 0.2 mm only. This eliminates the need to equip the rotating washing arms with open ends for inspection and cleaning access, thereby saving time and extending the pump life.
Dedicated Loading Solutions
A full range of transfer trolleys, loading / unloading conveyors, and pass-through hatches or windows is available to match your perfect workflow layout. Automatic conveyors can be provided with integrated drawer for canisters up to 4×10 liters capacity.
Features
Dynamic Water Loading
A variable speed pump allows the adjustment of water pressure / flows according to the water amount needed on each used rack configuration.
Hybrid Configuration
Electrical resistors and steam coil can be installed together in the same heat exchanger. When working simultaneously, they speed up the reprocessing cycle.
Traceability
Cycle and instrument traceability are available with SmartHub digital solutions.
The 7″ color touch displays, on both loading and unloading side, are easy to use.
Insights
Power Pulse Cleaning
As leading innovators, we have developed the newly patented “Power Pulse Cleaning”, allowing to reduce or skip manual pre-treatment in the cleaning process of complex narrow hollow lumed surgical instruments for ensured safety, consistency, and cost-efficiency.
Insights
Automation
Automation is key to save time whilst minimizing workflow interruption.
Our automated systems range from loading and unloading to recognizing instruments and packing them. They optimize labor usage and speed up the instrument reprocessing workflow. Moreover, few manual handling makes it possible to free up staff for other important tasks.
Insights
Flexible Loading System
Customize your wash cart levels through Flexible Loading System. It allows the preparation of instruments in single modules and facilitates the loading of the trolley, improving security and ergonomics.
Configurations
PWD 8626
Slim Configuration – 900 mm width.
HMI positioned on top of the chamber.
Overall Dimensions WxDxH
900 x 990 x 2500 mm
35.43″ x 38.97″ x 98.42″
Chamber Volume
~351 lt / 12.39 cu ft
Load Capacity
up to 18 DIN 1/1 trays
PWD 8628
Wider Configuration – 1150 mm width.
HMI positioned on side of the chamber.
Overall Dimensions WxDxH
1150 x 990 x 2500 mm
45.27″ x 38.97″ x 98.42″
Chamber Volume
~351 lt / 12.39 cu ft
Load Capacity
up to 18 DIN 1/1 trays
Solutions
Healthcare Solutions
Maximize safety and optimize processes with our tailor-made selection of equipment and components, innovative solutions, and state-of-the-art automation for hospital departments and clinics as well as CSSDs of all sizes. Our infection control solutions guarantee workflow optimization, maximum efficiency, and reliable results.
Solutions
Special Applications
Guarantee the best instrument treatment with special application solutions. SteelcoBelimed provides its medical experience and knowledge to deliver excellent reprocessing results even for robotic, ophthalmic, and orthopedic instruments.
Solutions
Mobile CSSD
A fully functioning and validated turnkey mobile CSSD for temporary use. Available in two different sizes depending on the amount and kind of instruments to reprocess, this mobile unit is the ideal solution to provide continuity in instrument reprocessing during construction works.
Services
Instrument Traceability
Tracing instruments throughout their life in hospitals – from use on patients to reprocessing in the CSSD or in external reprocessing centers to the next use on patients – is fundamental to patient safety.
Our SmartHub pieces of software provide you with the tools you need to track and document the history, location, and use of your medical devices throughout their lifecycle.
Steelco-branded washer disinfectors are designed to comply with the European EN ISO 15883-1/2/5 guidelines on performance, EN ISO 14971, EN 61010-1/2-040, EN IEC 61326-1, EN 62366 guidelines on safety, and EN 62304 guidelines on software design. They are classified CE0051 legacy medical devices (Directive 93/42/EEC, MDD).
Please contact your SteelcoBelimed representative to check country availability.
