EW 1 Series
Compact AERs - 1 scope capacity
The EW 1 Series of automatic endoscope reprocessors is designed for low-temperature washing and high-level disinfection/liquid sterilization of endoscopes. Its capacity differs depending on the scopes to reprocess: one flexible or rigid endoscope, up to four broncho/cystoscopes.

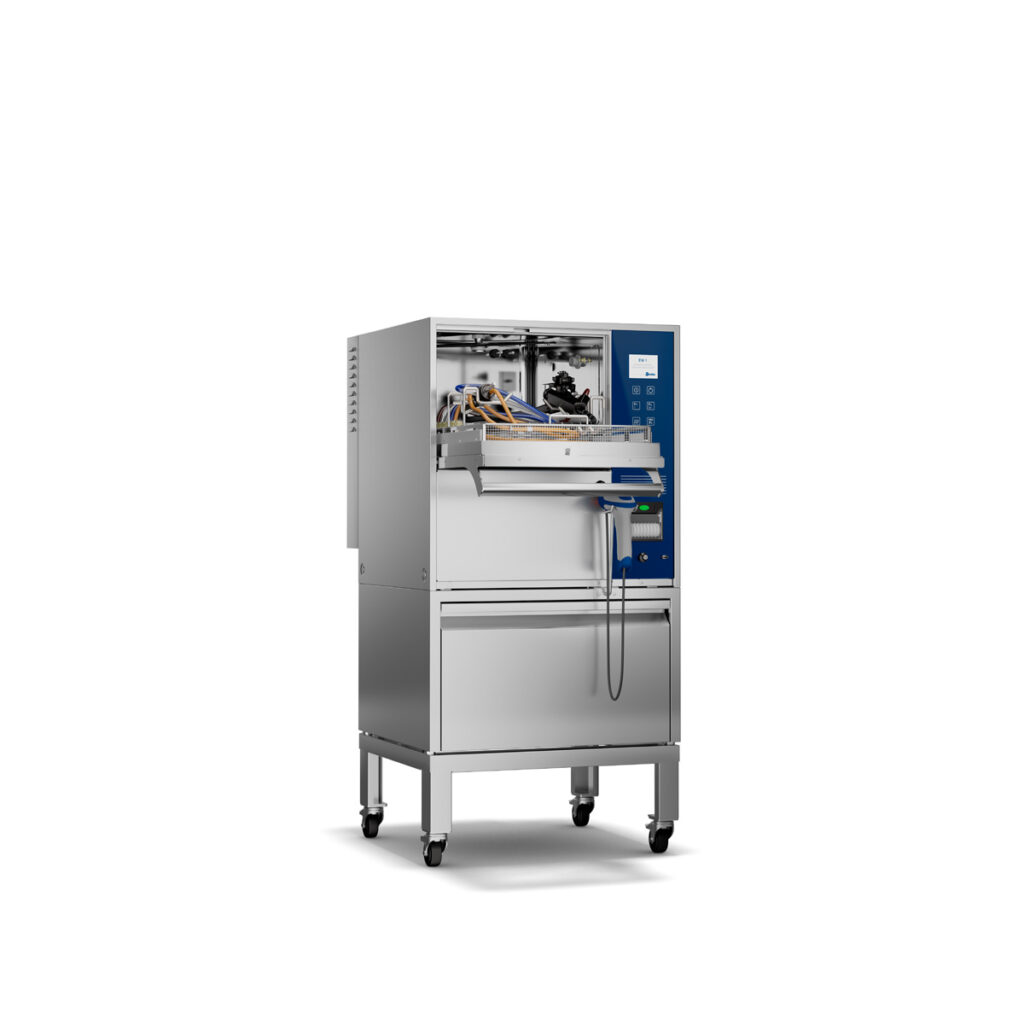

A compact design assures low cycle costs by minimizing footprint, water, chemicals, and energy consumption whilst guaranteeing an optimal level of infection control and prevention. Endowed with a stainless steel base for the storage of process chemicals, EW 1 Series’ design provides an installation set for any facility.
Available as single door or double door pass-through versions, EW 1 can also be ordered in its “rack configuration,” having two units installed, one on top of the other in a unique frame structure. EW 1 has been developed to fully comply with EN ISO 15883-4 and EN ISO 14937 in combination with its validated set of chemistries.
Workflow Solutions
A comprehensive range of solutions to meet the challenges of your reprocessing facilities. Whatever the sizes and layout of your endoscopy department, we help you plan, manage, and optimize the workflow to best ensure efficiency, productivity, and cost-effective operation. With this aim, we do not simply offer endoscope reprocessing devices, but a complete and integrated reprocessing system with carefully-designed accessories.
Complete Endoscope Reprocessing Traceability
Our whole range of endoscope reprocessing devices is compatible with SD Ares, the traceability software specially developed for the endoscope reprocessing process. SD Ares software is designed to meet the endoscopy room’s operational requirements by promptly tracking scopes and providing information to maintain safety, efficiency, and high production.
Dedicated Chemicals
A complete and comprehensive range of endoscopy-formulated process chemicals, ensuring efficient and type-tested performances.
The independently validated results achieved by our endoscope reprocessor range are strictly linked to the use of our dedicated chemistries, which provide cost-effective rapid cycles compliant to ISO 15883-4 and ISO 14937 standards.
Features
Flexibility
Treatment of one standard flexible endoscope, up to two video bronchoscopes/cystoscopes, and up to four fiber bronchoscopes/cystoscopes. Rigid endoscopes can also be reprocessed.
Ergonomics

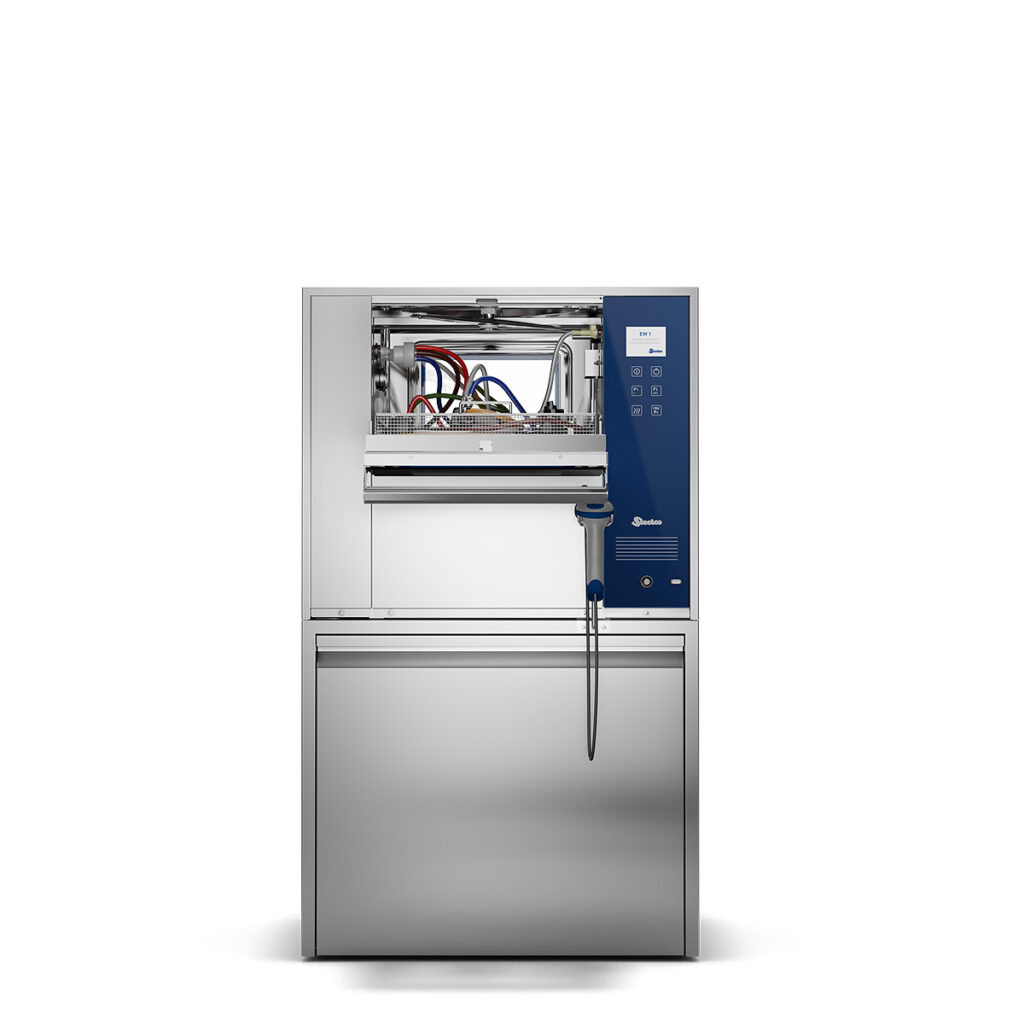

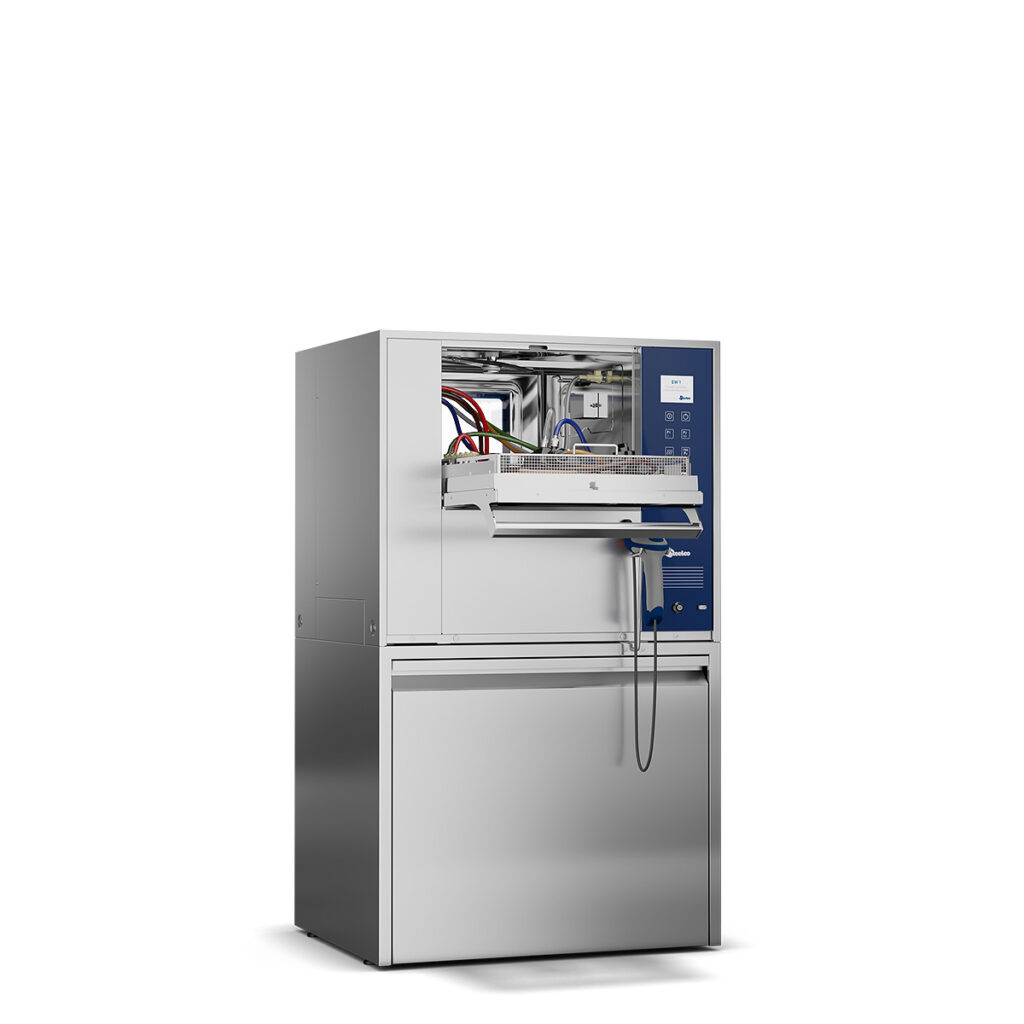

The hinged door acts as a stand for ergonomic loading / unloading procedures, and as an anti-dripping surface to help keep the floor dry, clean, and safe.
Thermal Self-Disinfection
Automatic and programmable thermal self-disinfection cycle of the chamber, the washing cart, and the hydraulic circuit according to the preferred method indicated in EN ISO 15883-4.
Customization
A compact and highly flexible design. Its rack configuration – with two units installed one on top of the other in a unique frame structure – fits even the smallest spaces.
Asynchronous Reprocessing
The rack configuration allows the complete asynchronous reprocessing of endoscopes in two completely independent units.
Full Traceability
Faster endoscope and operator recognition through barcode/RFID reader options. Cycle details can be stored on a memory stick connected to the integrated USB interface, printed by the built-in thermal printer, or alternatively registered in the optional traceability software.
Configurations
EW 1
Available as a single or double door version.
Single Door Version
Overall Dimensions WxDxH
600 x 630 x 953 mm
23.62 x 24.80 x 37.20 in
Double Door Version
Overall Dimensions WxDxH
710 x 570 x 1206 mm
27.95 x 22.44 x 47.48 in
EW 1 Rack Version
Available as a single or double door version.
Single Door Version
Overall Dimensions WxDxH
750 x 690 x 1643 mm
29.53 x 27.16 x 64.68 in
Double Door Version
Overall Dimensions WxDxH
860 x 570 x 1663 mm
33.86 x 22.44 x 65.47 in
Two machines installed on top of each other in a unique frame structure that shares the same chemical storage compartment. This space-saving option provides the system with two asynchronous and independent chambers to maximize workflow without the delay of having to wait for a second endoscope.
Solutions
Endoscope Reprocessing
The safest patient care and infection prevention for endoscopy and CSSDs departments, regardless of their size and application focus. With one of the broadest portfolios for endoscope reprocessing, SteelcoBelimed covers the entire workflow of endoscope reprocessing from pre-cleaning to storage.
Services
Digitalization in Healthcare
The future is smart. Smart systems in CSSDs work flawlessly, informing you well in advance when an error occurs or a repair is needed. Plan your operations with more precision than ever, consequently reducing costs and improve efficiency.
Digitalization also helps track and trace instruments and sets, so to be sure they have been correctly reprocessed inside your CSSD or outside in big reprocessing centers.
Steelco-branded endoscope reprocessors are designed to comply with the European EN ISO 15883-1/4/5 and EN ISO 14937 guidelines on performance, EN ISO 14971, EN 61010-1/2-040, EN IEC 61326-1, EN 62366 guidelines on safety, and EN 62304 guidelines on software design. They are classified CE0051 legacy medical devices (Directive 93/42/EEC, MDD).
